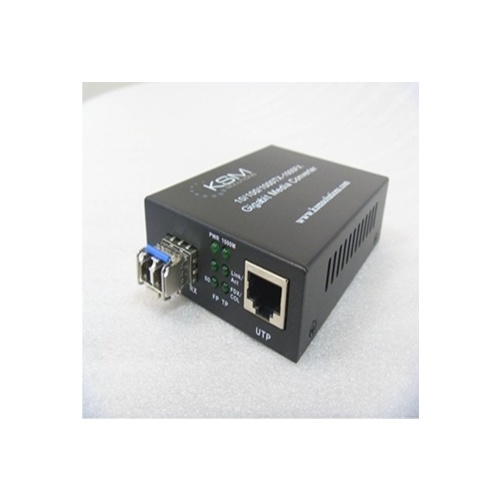

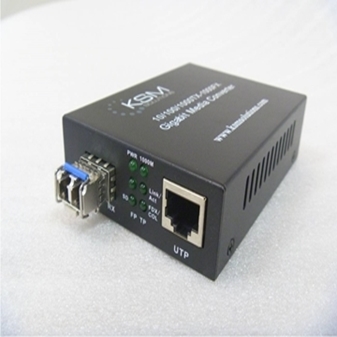

Fibre Ethernet Media Converter Single Mode LC 1.25G SFP 1310nm 20K
Available for same day shipment or collection
LXT-1125B-020K: Extending your 10/100/1000Mbps Ethernet network over a fibre optic link had never been easier using KSM’s Fibre Ethernet Media Converter Single Mode. The unit converts an electrical signal transmitted over an RJ45 Connector, Cat5e or Cat6 UTP cable and then converts it into a duplex single mode light source capable of transmitting up to 20KM.
Fibre Port:
The unit has a single Fixed speed 1000Mbps fibre port slot that accepts a Small Form Pluggable(SFP) Transceiver or fibre Optic Module that can be swapped to suit a number of different fibre optic applications, capable of extending network distances up to 160KM’s.
Digital Diagnostic Monitoring DDM:
All KSM’s Single Mode Small Form Pluggable SFP’s use Digital Diagnostic Monitoring DDM to enable access to critical and important information that affects the performance and life of the SFP. This information includes, operational temperature, receiver power, transmitter bias current , transmission power and Voltage consumption. All of this information can be feed into a control loop that constantly monitors the condition of the SFP, trigger alarms or be logged for analysis at a later stage.
Ethernet Port:
The second port is an Ethernet port that accepts both a Cat5e, Cat6, UTP or STP connector. This port is auto-negotiate as standard, but can be configured to operate at a fixed speed of either 100Mbps or 1000Mbps using the Toggle Switches on the rear of the unit.
Additional Information:
KSM’s fibre optic media converter comes complete with everything you need. The pack includes the SFP Module transceiver, media converter body and the Australian 240V, 5V Power Adapter. Its configured and ready to go straight out of the box.
|
Description |
Specification |
|
Fibre Port |
Hot Pluggable SFP Module Single Mode 1310nm with Digital Diagnostic Monitoring DDM |
|
Fibre Distance |
Up to 20KM |
|
Fibre Connector |
LC Duplex Single Mode |
|
Ethernet Port |
10/100/1000Mbps Auto-negotiate |
|
Ethernet Connector |
RJ45 - Cat5e, Cat6, Cat6A |
|
Ethernet Distance |
Up to 100Mtrs |
|
Toggle Switch Settings |
100Mbps or 1Gbps |
|
Operating Temperature |
0 to 75 Degrees |
|
Mean Time Between Failure |
100K Hours |
|
LED |
FUNCTION |
|
PWR – Power |
Power: ON/OFF |
|
FX Link/Act - Fibre Port Link Status |
Link OK/Data TX-RX/Link Fail: ON/FLASH/OFF |
|
FX - Fibre Port Signal Detect |
Laser Status OK /No Laser Link: ON/OFF |
|
1000M - UTP Port Speed |
1000Mbps/100Mbps: ON/OFF |
|
TX Link/Act – UTP Port Link Status |
Link OK/Data TX-RX/Link Fail: ON/FLASH/OFF |
|
TX- UTP Port Signal Type Detect |
Full Duplex/Half Duplex: ON/OFF |
|
Certifications: |
C Tick, EMC Certified Approval N12565 |
|
Dimensions |
26mm x 71mm x 94mm |
|
External Australian Plug Power Adapter |
240VAC, 5VDC. Optional 48VDC Input |
Consists of the following Part Numbers:
RFX-1100-BDY - Fibre Ethernet Media Converter 1 Port Fibre SFP Slot to 1 Port RJ45 10/100/1000base-T
LLD-1.25B-020K - LC SFP Fibre Module 1.25G Single Mode 1310nm LX 20KM
(LXT-1125B-020K)
| SKU | LXT-1125B-020K |
| Brand | KSM |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.050m |
| Shipping Length | 0.060m |
| Shipping Cubic | 0.001500000m3 |
| Unit Of Measure | 1 |
